LMK-ML Linear Bushing

LMK-ML Linear Bushing

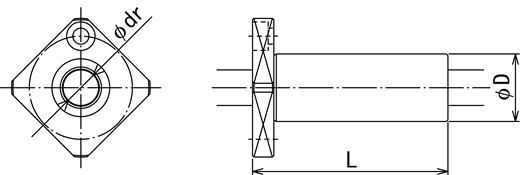

Drawing

Datasheet

Model No.				Main dimensions
	Inscribed bore diameter			Outer diameter		Length		Flange	diameter
	dr	Tolerance		D	Tolerance	L	Tolerance	D₁	Tolerance	K
		Precision	High		Precision/High
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
LMK 6ML	6	—	—	12	0	35	0	28	0	22
					–0.013				–0.2
LMK 8ML	8	—	—	15	0	45	0	32	0	25
					–0.013				–0.2
LMK 10ML	10	—	—	19	0	55	0	39	0	30
					–0.016				–0.2
LMK 12ML	12	—	—	21	0	57	0	42	0	32
					–0.016				–0.2
LMK 13ML	13	—	—	23	0	61	0	43	0	34
					–0.016				–0.2
LMK 16ML	16	—	—	28	0	70	0	48	0	37
					–0.016				–0.2
LMK 20ML	20	—	—	32	0	80	0	54	0	42
					–0.019				–0.2
LMK 25ML	25	—	—	40	0	112	0	62	0	50
					–0.019		–0.4		–0.2
LMK 30ML	30	—	—	45	0 -0.019	123	0	74	0 -0.2	58
